Configuration:

  • Enable Globally
    • ‘router ospf <process id>’
    • Network statements with IPs/wildcard masks
      • ‘network 0.0.0.0 0.0.0.0 area <area #>
  • Enable Under Interface
    • ‘ip ospf <process id> area <area #>
    • If a manual router ID is needed, needs to be entered under the ‘router ospf <process id>’ configuration.
    • This enables OSPF for both primary and secondary IP addresses.
    • OSPF stays enabled even when IP address changes.
  • Verification basics:
    • ‘show ip ospf’
    • ‘show ip ospf int brief’
      • Quick way of showing which interfaces are enabled, which area each interface is in.
    • ‘show ip ospf neighbor
    • ‘debug ip ospf adjacency’
    • ‘show ip ospf database’

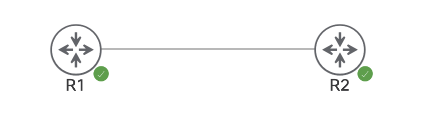

Below there are two routers running OSPF.

R2:
– Gig0/0 – 10.30.1.2 255.255.255.252
– L0 – 10.30.2.1 255.255.255.0
– L2 – 10.30.3.1 255.255.255.0

R1:
– Gig0/0 – 10.30.1.1 255.255.255.252
– L0 – 172.16.1.1 255.255.255.0
– L1 – 172.16.2.1 255.255.255.0

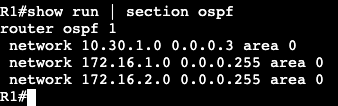

R1 OSPF Config:

R2 OSPF Config:

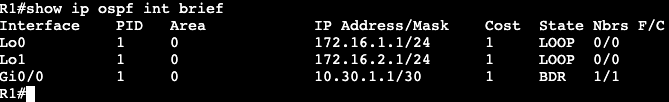

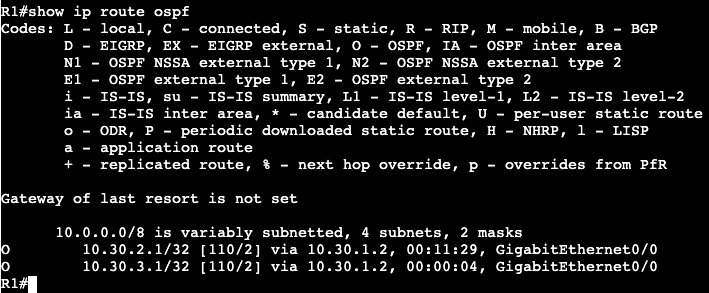

R1 Verification/Routing Table:

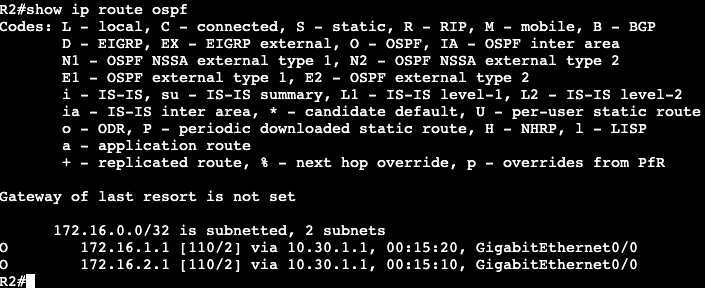

R2 Verification/Routing Table:
